Automatic Membership Downgrade

Project Access Link

https://editor.momen.app/tool/DqQnbOVO7dG/WEB?code=3j52Zj2LYxTeh&ref=0562398

Introduction

Goal: Automatically reset a user’s status from “VIP” to “Standard” once their membership expires.
Use Cases: Annual points clearing, inactive account cleanup, daily activity score resets, or periodic subscription management.
Core Logic: Use a Scheduled Trigger to run an Actionflow at a fixed interval based on absolute time thresholds. The flow filters records where the expiry date is less than or equal to the current time and performs a batch update on the status field.

Steps

Data Storage

First, we need a data structure to track membership details. Because the built-in system account table restricts manual data insertion, we will create a separate profile table with a 1:1 relationship to facilitate our testing.

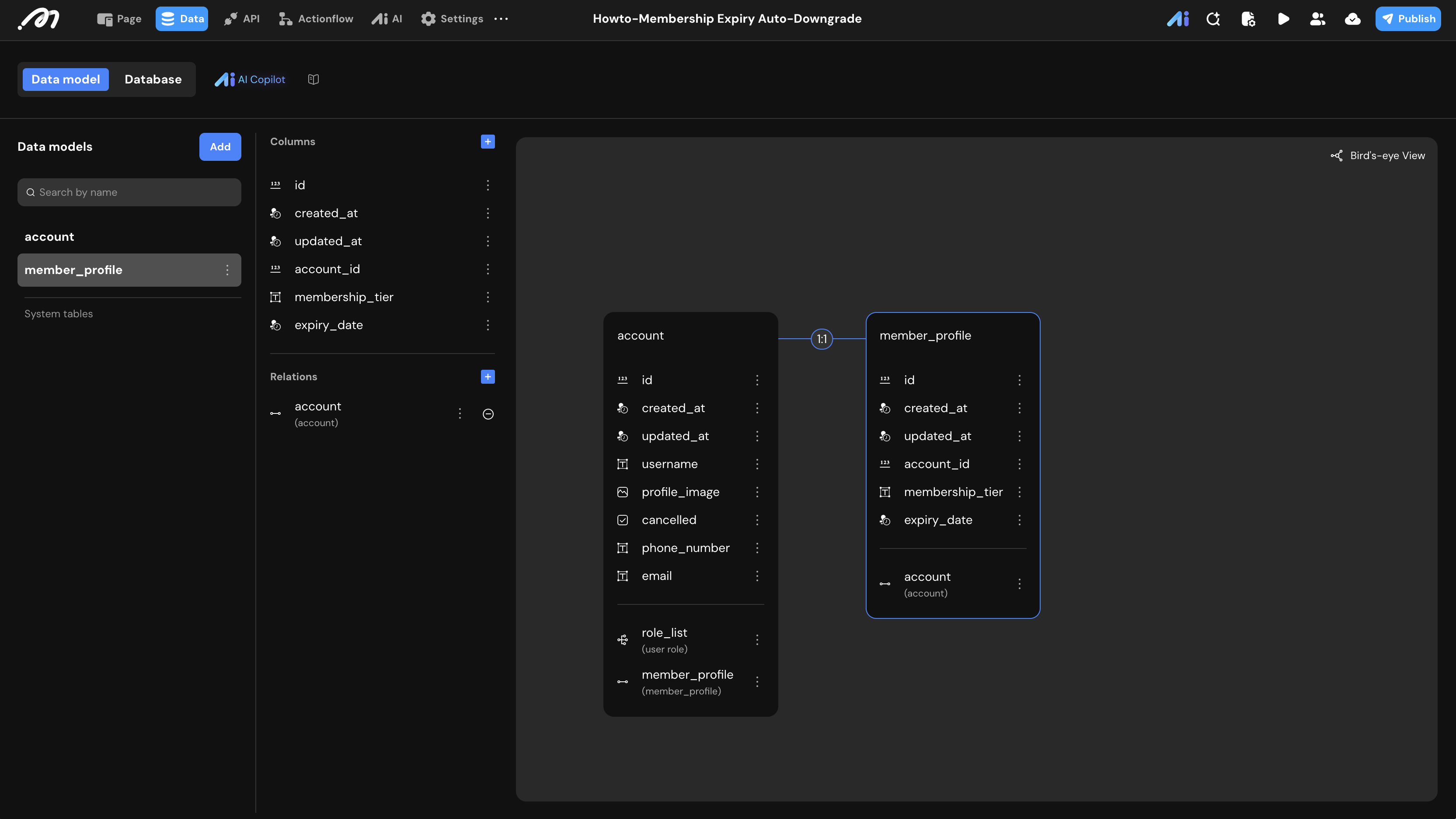

Data Model: Create a table named member_profile.
Fields:

Field Name	Type	Note
`membership_tier`	Text	Values include: `VIP`, `Standard`.
`expiry_date`	Date/Time	Records the exact time when VIP privileges expire.
`account_id`	BigInt	An auto-generated foreign key created after establishing a 1:1 relationship with the built-in account table.

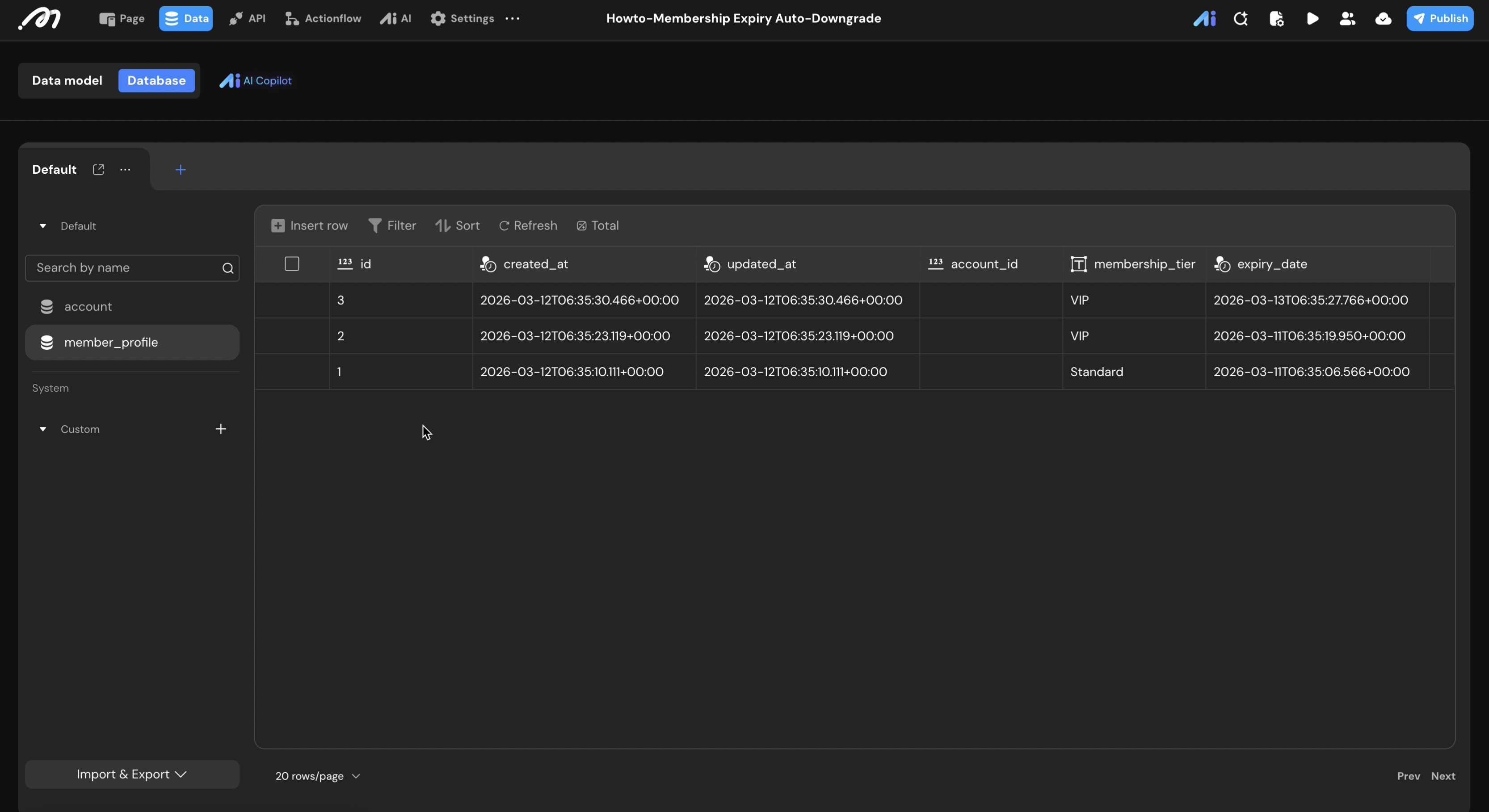

Database Records: Prepare test data in the Database tab. Ensure you manually insert at least one record with an expiry_date in the past (expired) and another in the future (active) to verify the logic.

Logic Configuration

We will now build the backend logic to handle the batch update.

Actionflow Construction

Go to the Actionflow tab and create a new flow named Membership Expiry Auto-Downgrade.

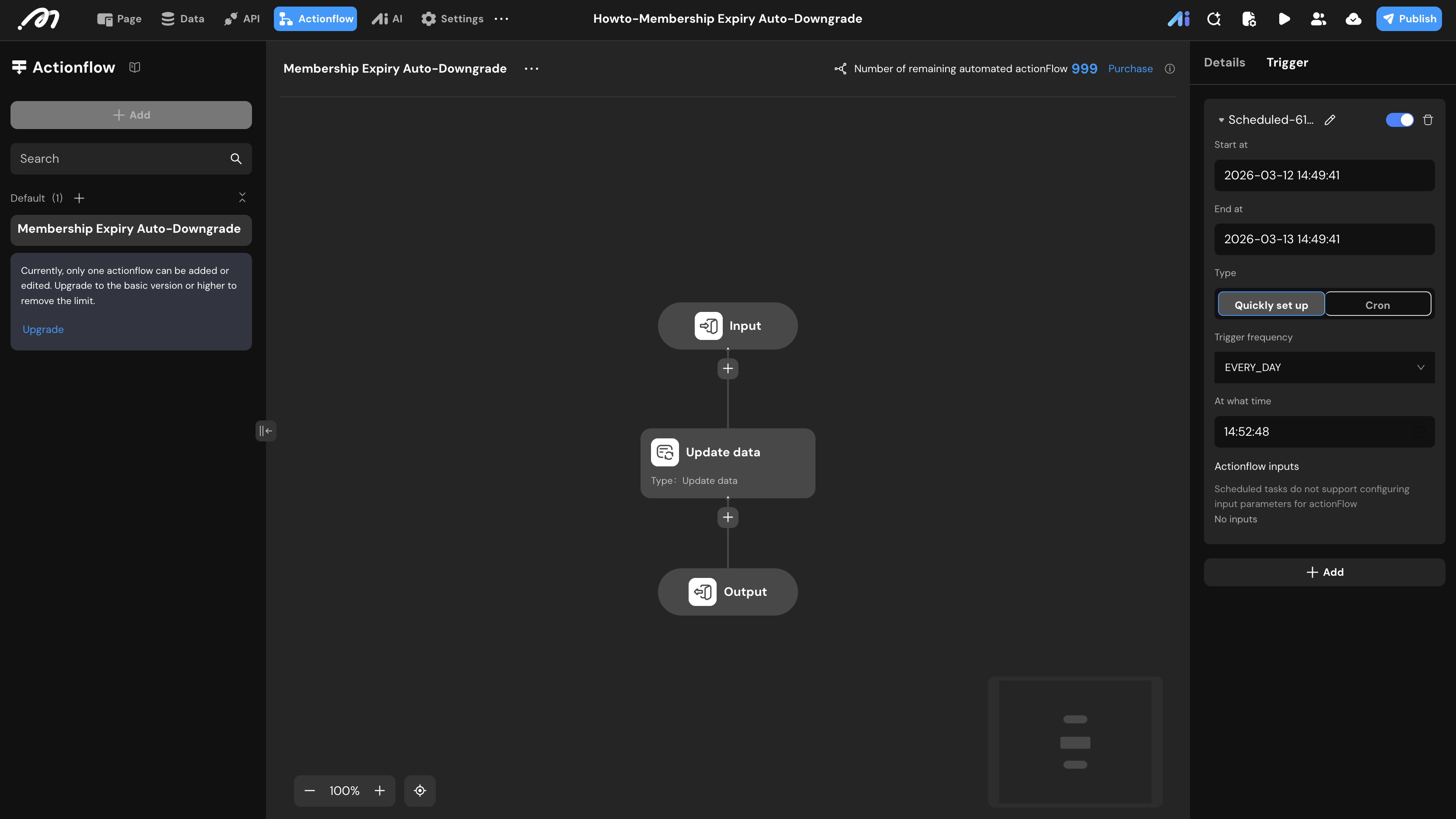

Trigger Configuration:
- Select the Trigger panel on the right sidebar.
- Add a Schedule trigger.
- Set the Trigger frequency (e.g., EVERY_DAY) and specify the exact time the check should occur.

Action Steps:
- Add an Update data node.
- Table: Select member_profile.
- Set to: Change membership_tier to Standard.

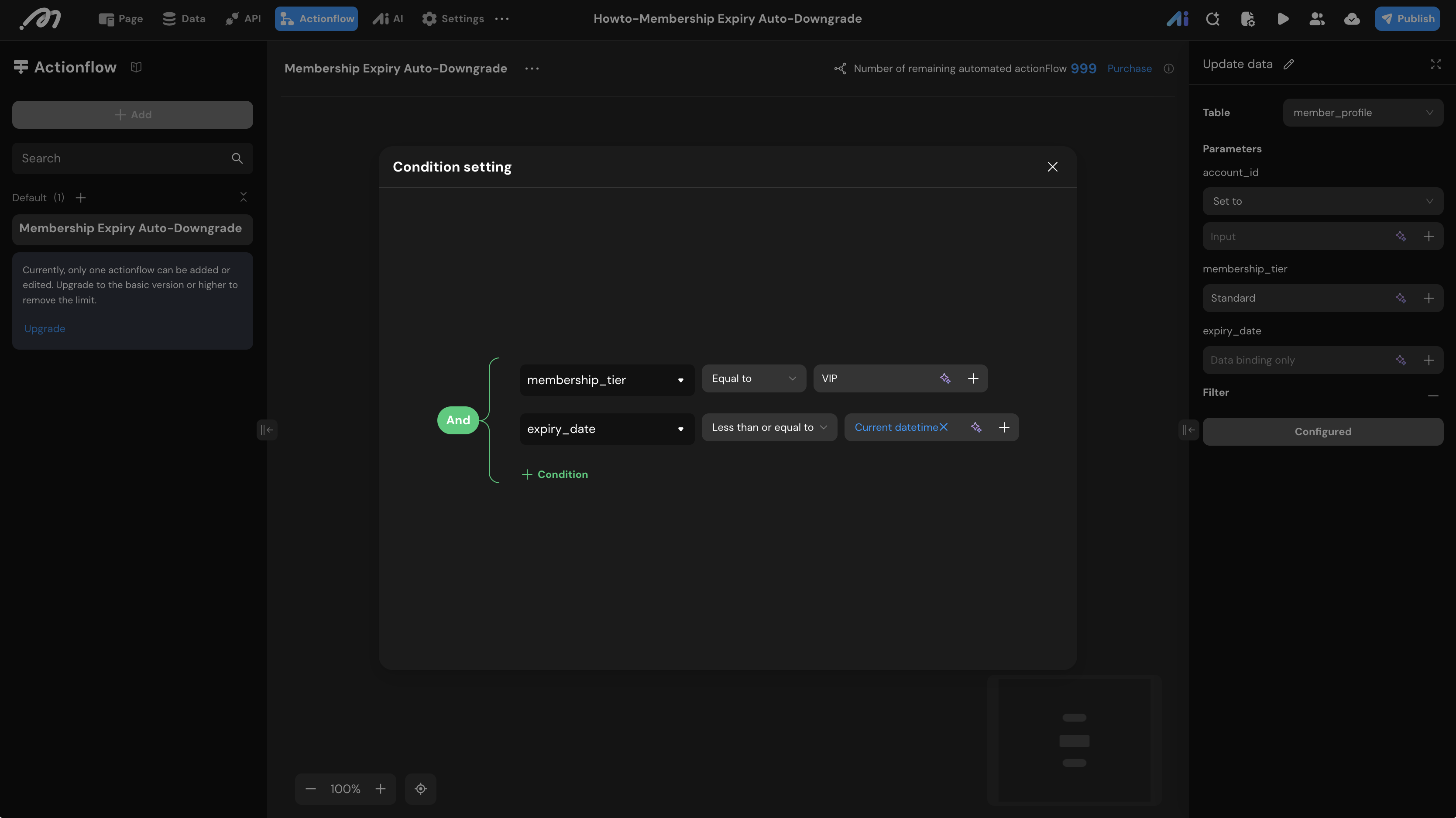

- Filter (Condition Setting):
  - Condition 1: membership_tier Equal to VIP.
  - Condition 2: expiry_date Less than or equal to Current datetime.

The Update data node in Momen supports batch updates. It will apply the changes to all records that meet the filter criteria in a single execution.

Verification

To verify the automation:

Set the scheduled trigger to a time a few minutes into the future.
Wait for the scheduled time to pass.
Return to the Data -> Database tab and click Refresh.

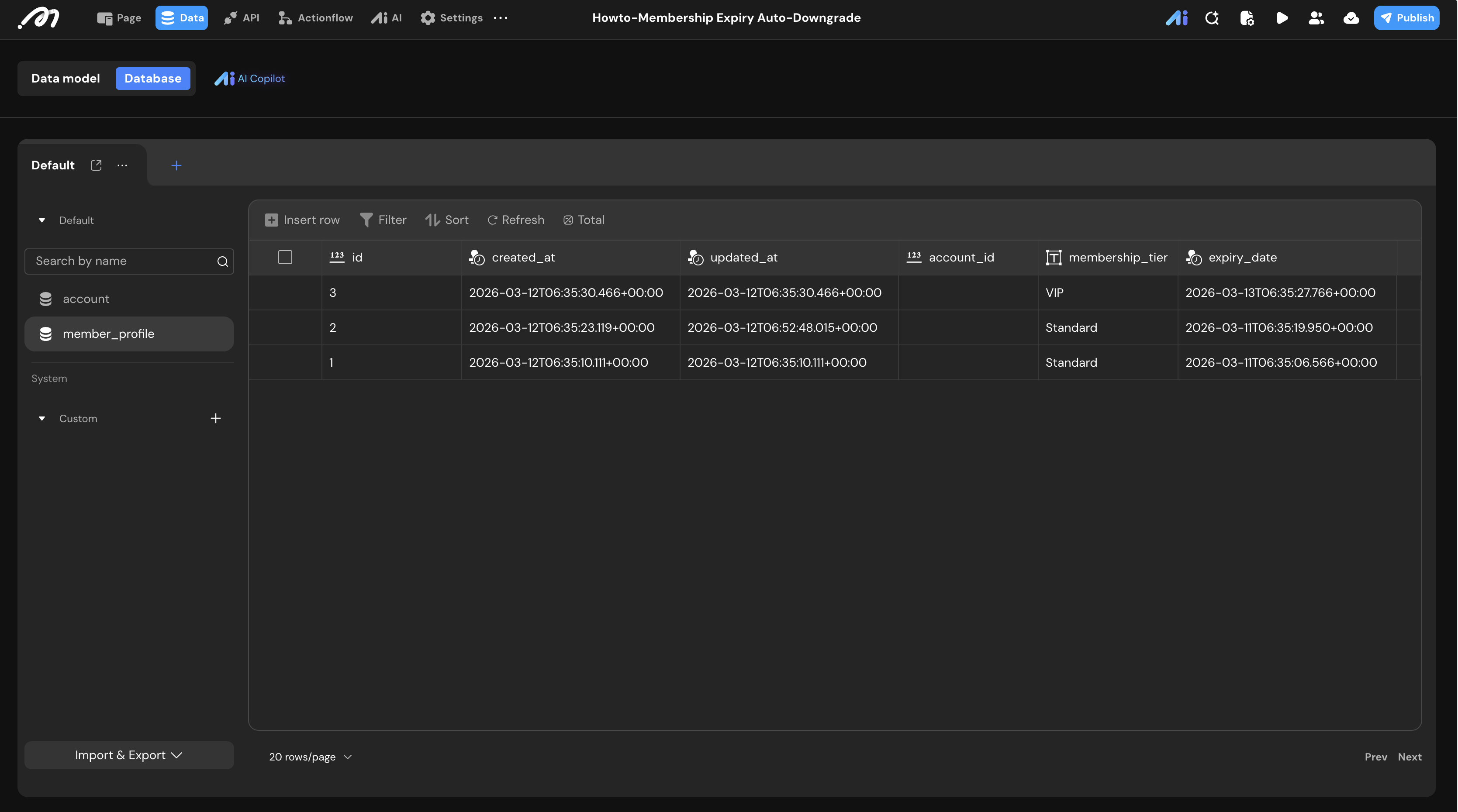

Result: The record with the expired date should now show a membership_tier of Standard, while the unexpired record remains VIP.
Check the Actionflow execution quota.

⚠️

When using batch updates, the node only returns a single record’s result in its output. If your logic requires individual processing for each updated record (like sending an email notification), consider using a Loop node instead.
