Order Expiry Scheduler

Project Access Link

https://editor.momen.app/tool/dK5wjNzNOkz/WEB?code=urAsbw5kqNaNt&ref=0562398 

Introduction

• Goal: Automatically change the status of an order from “Pending” to “Cancelled” if it remains unpaid for a specific duration.
• Applicable Scenario: Order timeouts, membership expiration, meeting room release, or event registration deadlines.
• Core Logic: Use a Scheduled Trigger to run a background Actionflow every minute, querying expired records and batch-updating their status.

Steps

Data Storage

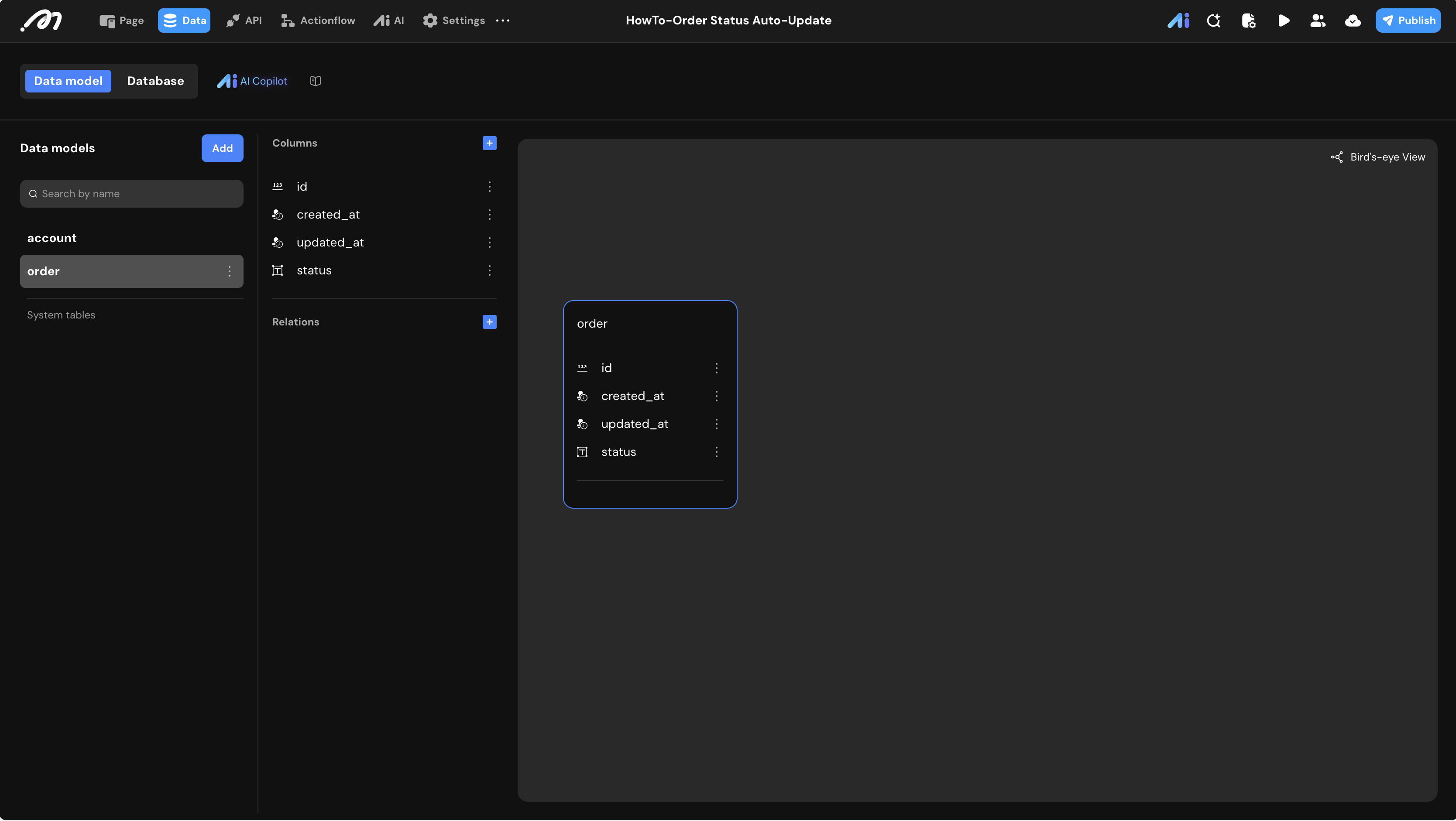

• Data Model: Create a table named order.

Logic Configuration (Actionflow)

Navigate to the Actionflow tab to build the automation logic.

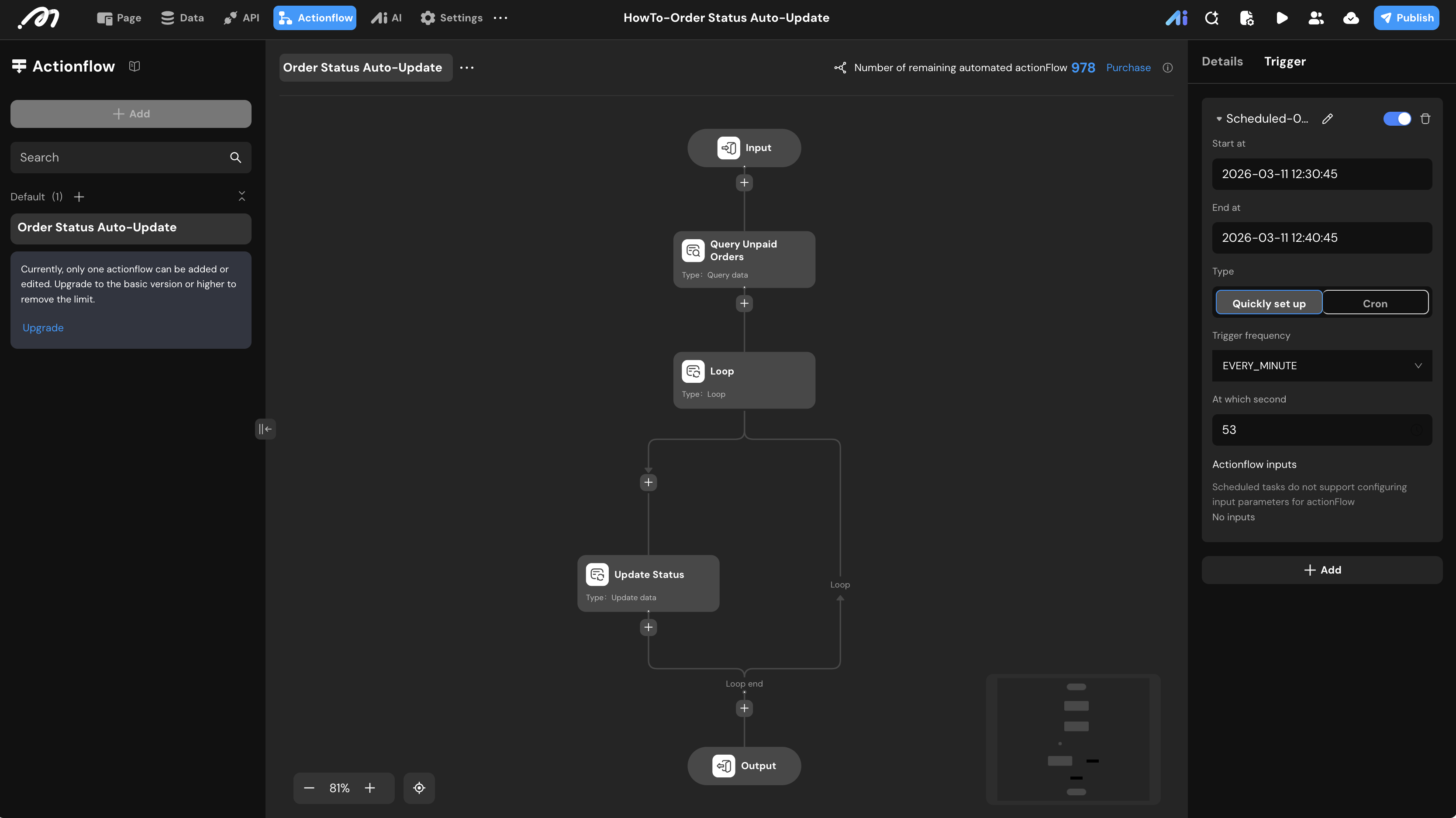

Scheduled Trigger Configuration

1. Create a new Actionflow named Order Status Auto-Update.
2. In the Trigger panel, add a Schedule trigger.
3. Start at / End at: Define the effective time range for this automation.
4. Trigger frequency: Set to EVERY_MINUTE (for testing purposes) or your desired business interval.
5. At which second: Specify an exact second.

Querying Expired Orders

Add a Query Data node to identify orders that need to be cancelled.

1. Table: Select order.

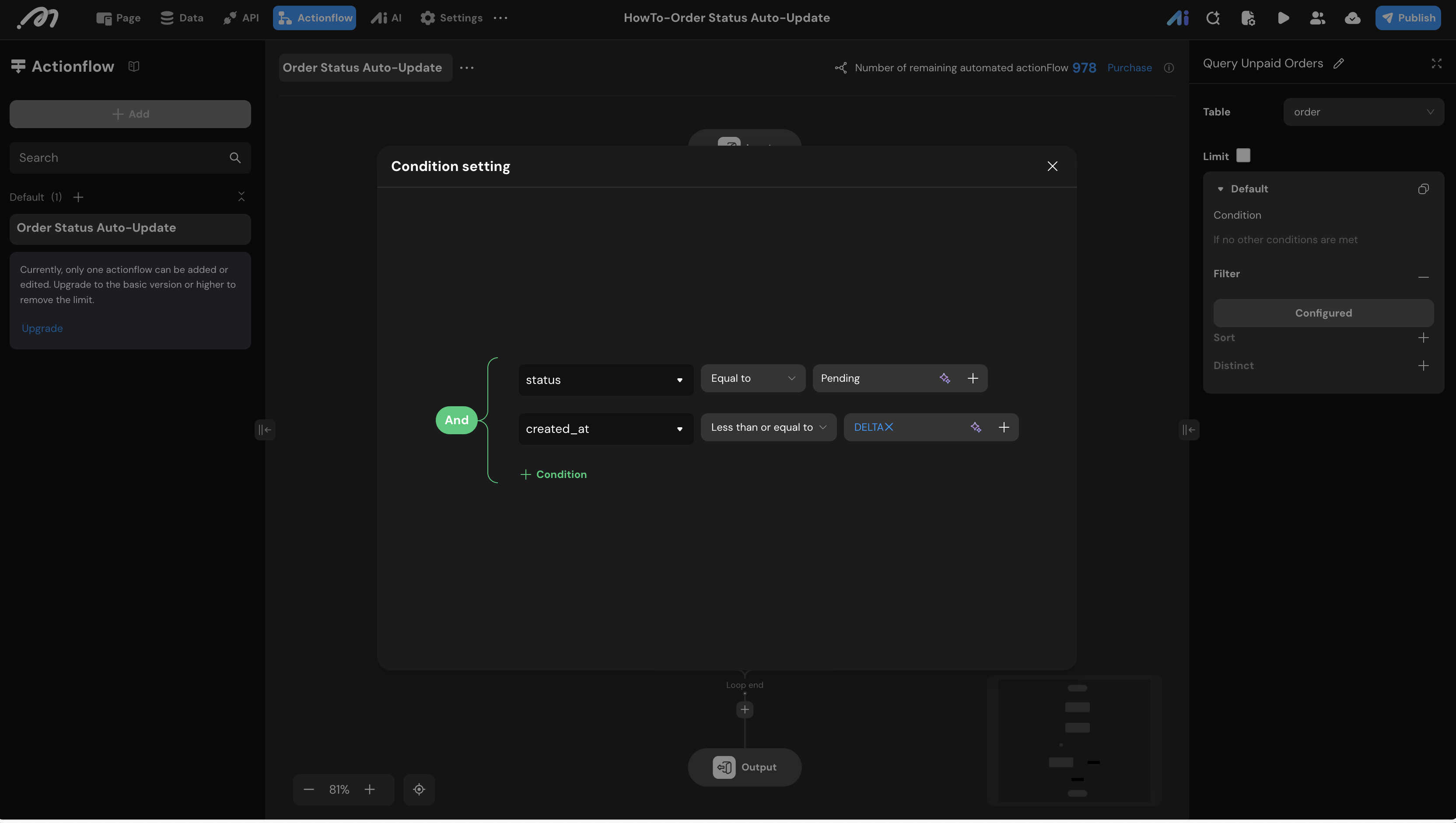

2. Filter Logic: Configure the conditions using the “And” operator:
   • status Equal to Pending.
   • created_at Less than or equal to DELTA formula.
3. Formula Setting: Use the DELTA function to calculate the expiration threshold:
   • Original time: Current datetime.
   • Operation: Decrease.
   • Minute: 1 (This defines the 1-minute timeout).

Batch Updating Status

Use a loop to process the results from the query.

1. Add Loop: Connect a Loop node to the Query node. Set the data source to the output of Query Unpaid Orders.

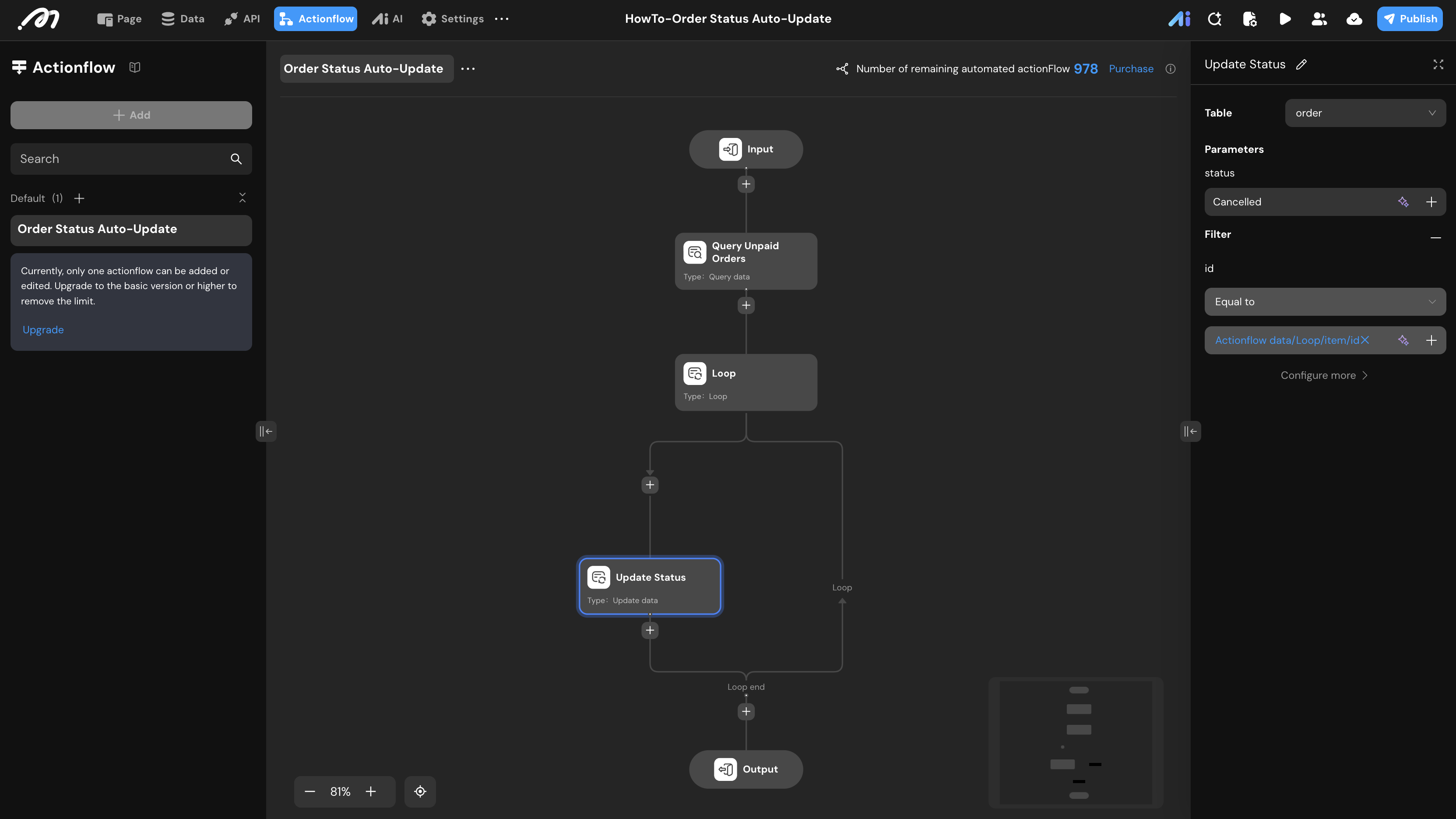

2. Update Data: Inside the loop, add an Update Data node.
   • Table: order.
   • Filter: id Equal to Actionflow data -> Loop -> item -> id.
   • Parameters: Set status to a constant value: Cancelled.

Verification

To test the logic, go to the Data -> Database view and follow these steps to observe the time-sensitive behavior:

1. Insert Test Data: Manually add two records.
   • Record A: status = Paid.
   • Record B: status = Pending. Note the exact created_at time (e.g., 12:33:10).
2. First Execution Cycle:
   • Wait for the first scheduled trigger (e.g., at 12:33:53).
   • Since the time elapsed since creation (43 seconds) is less than the 1-minute threshold defined in the DELTA formula, the status will remain unchanged as Pending.
3. Second Execution Cycle:
   • Wait for the next scheduled trigger (e.g., at 12:34:53).
   • Now that the elapsed time (1 minute and 43 seconds) exceeds the 1-minute threshold, the Actionflow will successfully query the record.

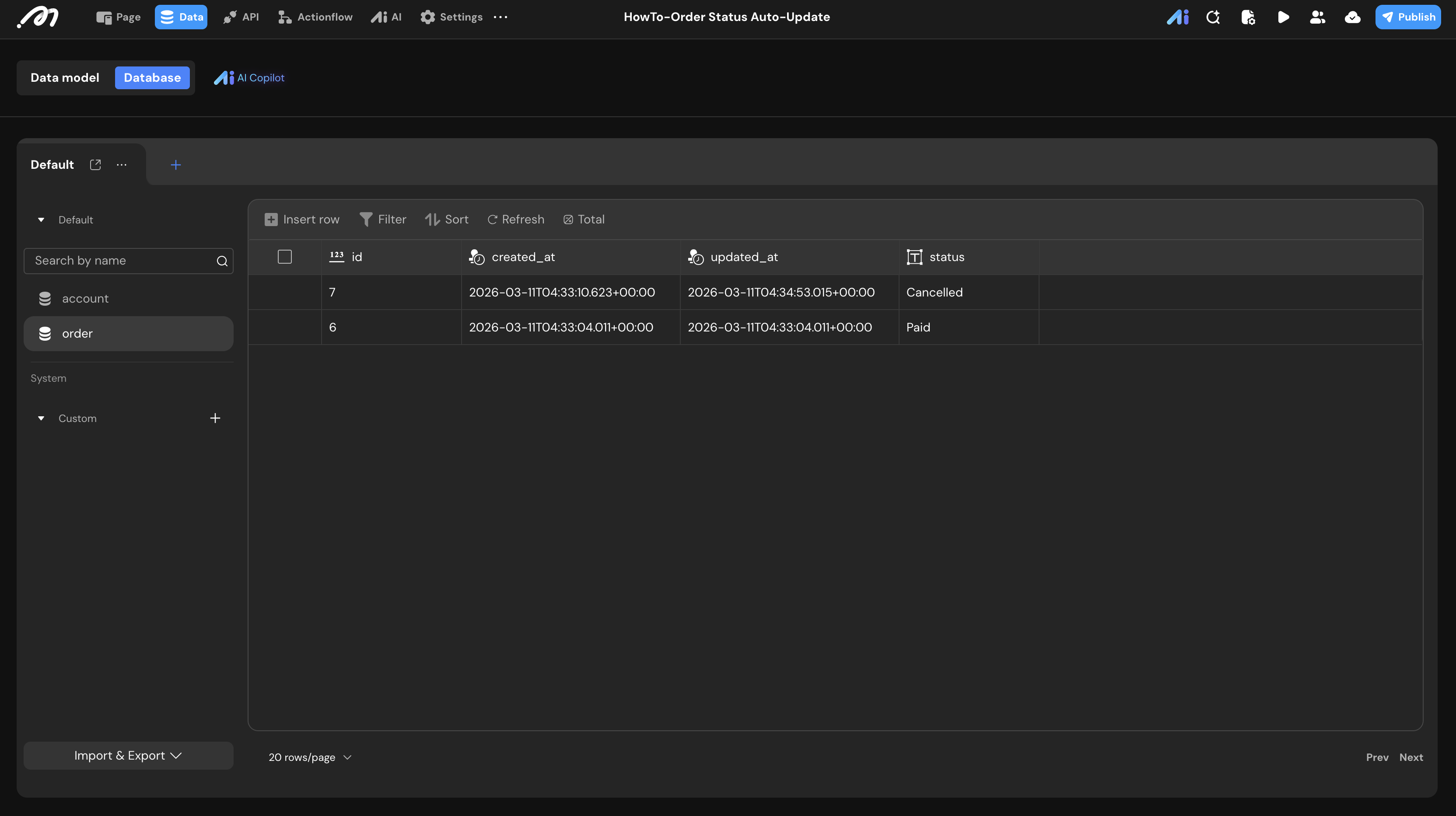

4. Final Result: Refresh the database view. Record B’s status should now be updated to Cancelled, while Record A remains Paid.
