Canvas Operations

Hierarchical Structure

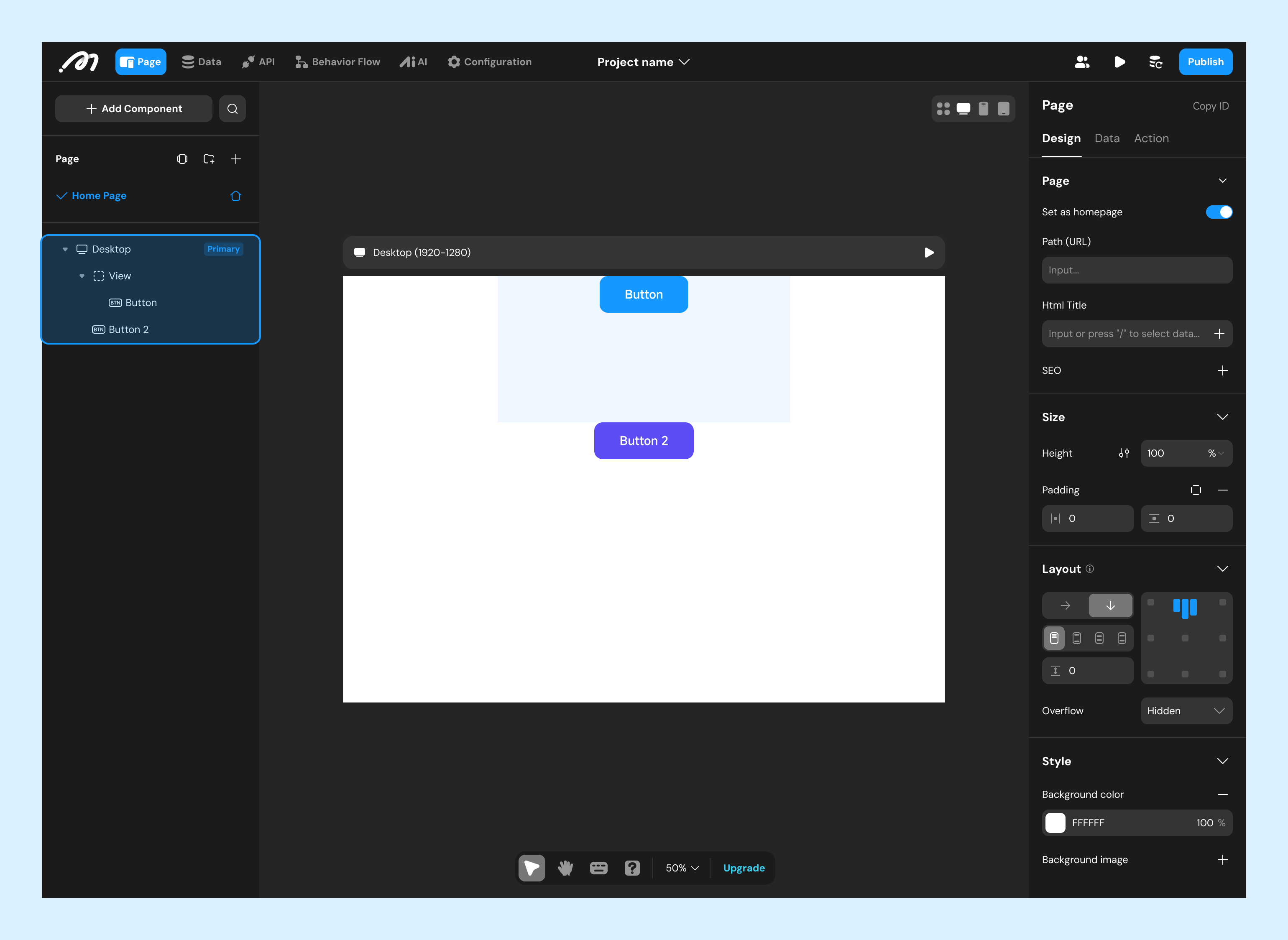

Pages and container components support nesting other components. The component tree in the left sidebar displays these nesting relationships.

Currently, cross-level dragging to adjust nesting is unavailable; use the cut-and-paste method instead.

Components at the same level follow a display order: newer components overlay older ones. To control the display order, drag components in the left sidebar or use the “Move” option in the right-click menu. You can also use the following shortcuts:

• Bring to Front: ]
• Send to Back: [
• Move Up One Layer: ⌘ ] | Ctrl ]
• Move Down One Layer: ⌘ [ | Ctrl [
• Move Up: ↑
• Move Right: →
• Move Down: ↓
• Move Left: ←

Selection

Single Selection

Interaction

Click a component directly to select it, or hold ⌘ | Ctrl to select its parent component. After selecting, you can use shortcuts to switch selection:

• Select Parent: Shift ⏎
• Select Child: ⏎
• Select All Siblings: ⌘ A | Ctrl A
• Select Previous Component: Shift Tab
• Select Next Component: Tab

Multi-Selection

Interaction

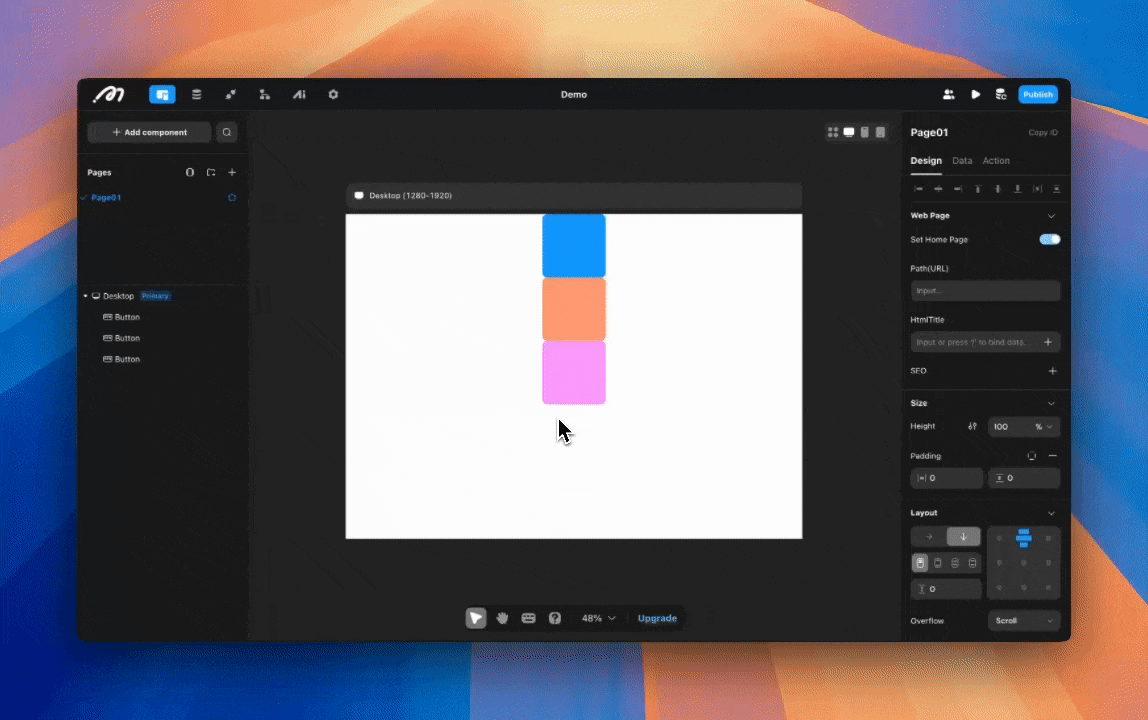

1. To multi-select components on a page, hold Shift and click each component. Alternatively, in the left sidebar, hold ⌘ | Ctrl and click components to achieve the same effect.

2. For batch selection, use the pointer to draw a selection box on the canvas, or in the left sidebar, hold Shift to select all components between two.

After multi-selecting, shared properties can be modified in the right sidebar.

Grouping

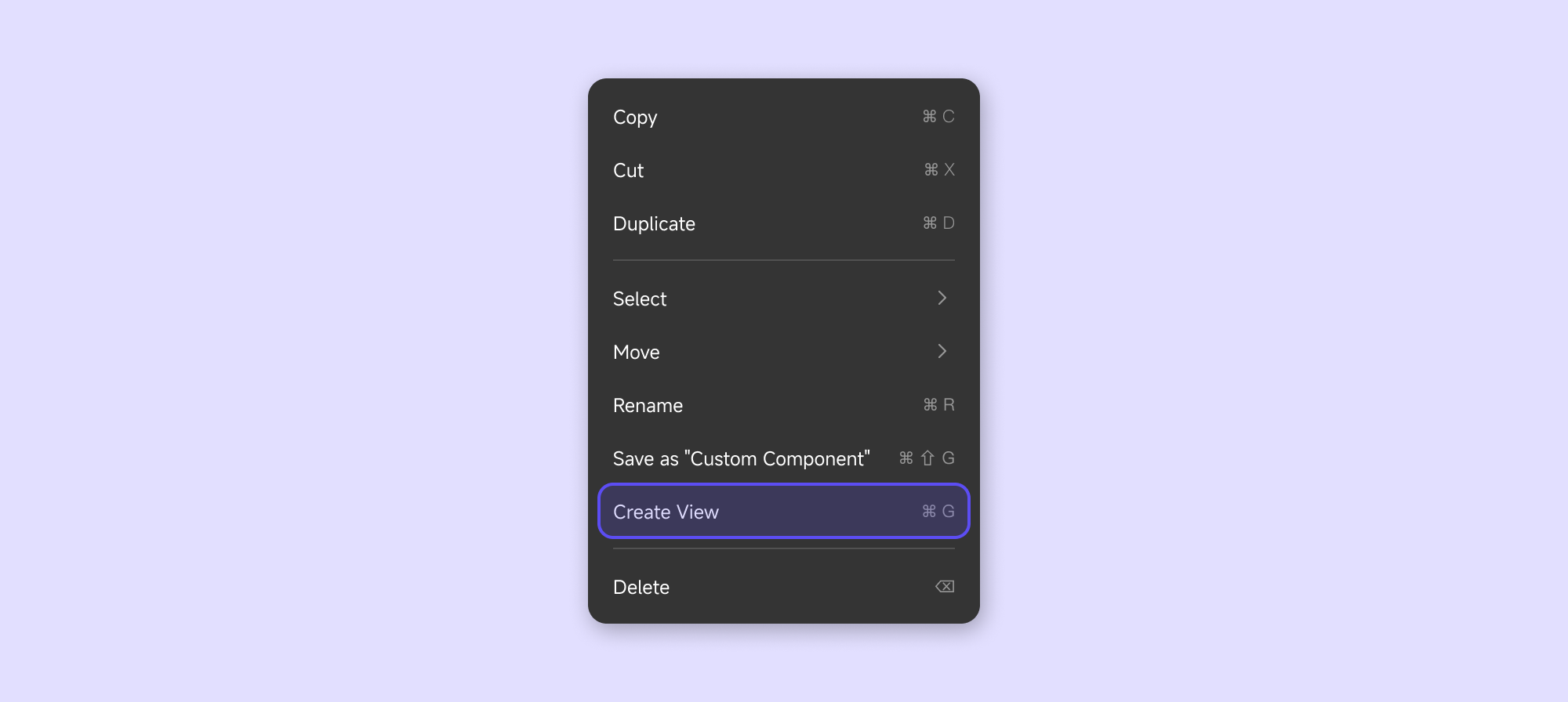

Group selected components into a view using the “Create View” option in the right-click menu or the shortcut ⌘ G | Ctrl G.
