Formula and Conditions
Formulas and Conditional Judgments
In addition to being used directly by actions and components, data can also be processed through formulas and conditional logic.
Formulas
Formulas are functions used to calculate or transform data. Momen provides a variety of formulas for operations on text, numbers, arrays, time, and more.
Type Conversion
| Name | Description | Example |
|---|---|---|
| TO_TEXT | Converts integers, decimals, JSONB, etc., to text | Original data: {"message": "Hello World!"} → '{"message": "Hello World!"}' |
| TO_INTEGER | Converts text or decimals to integers | Original data: -3.1415926 → -3 |
| TO_DECIMAL | Converts text to decimals | Original data: "-3.1415926" → -3.1415926 |
| TEXT_TO_DATETIME | Converts text to datetime | Original data: "2025-02-21 14:36" → 2025-02-21T14:36:00.000+08:00 |
| COMBINE_DATE_AND_TIME | Combines date and time into datetime | Date: 2024-01-08, Time: 13:38:00.000+08:00 → 2024-01-08T13:38:00.000+08:00 |
| EXTRACT_DATE_OR_TIME | Extracts date or time from datetime (timestamp) | Datetime: 2024-01-08 13:38:00.000+08:00, Extract: Date → 2024-01-08 |
Text Processing
| Name | Description | Example |
|---|---|---|
| STRING_LEN | Returns the length of the text. All characters (including Chinese, letters, numbers, symbols) count as one. | Text: "Hello World!" → 12 |
| REPLACE_PART | Replaces part of the text with new text based on the specified position (first character is 0) and number of characters. | Text: "Hello World!", Start: 1, Length: 4, New text: "ola" → "Hola World!" |
| REPLACE_TEXT | Finds the specified text and replaces it with new text, based on the number of occurrences. | Text: "Hello World!", Old: "o", New: "", Count: 1 → "Hell World" |
| FIND | Returns the position of the first occurrence of the specified text. Returns -1 if not found. | Text: "Hello World!", Find: "o" → 4 |
| CONTAIN | Checks if the specified text exists, returns true or false. | Text: "Hello World!", Find: "ello" → true |
| SUBSTRING | Extracts a substring. Includes the start position but not the end; first character is 0. | Text: "Hello World!", Start: 0, End: 5 → "Hello" |
| LEFT | Returns a specified number of characters from the start of the text. | Text: "Hello World!", Count: 5 → "Hello" |
| RIGHT | Returns a specified number of characters from the end of the text. | Text: "Hello World!", Count: 5 → "World" |
| LOWER | Converts all letters in the text to lowercase. | Text: "Hello World!" → "hello world!" |
| UPPER | Converts all letters in the text to uppercase. | Text: "Hello World!" → "HELLO WORLD!" |
| RANDOM_STRING | Generates random text. (Random characters are generated on the frontend and are not recommended for secure scenarios such as coupon codes.) | Min length: 5, Max length: 10, Lowercase: true, Uppercase: true, Numbers: true → "seXr3aoRD" |
| SPLIT | Splits the text into an array using the specified separator. | Text: "2024/01/08", Separator: "/" → ["2024", "01", "08"] |
| ENCODE_URL | Converts text string to URL standard format | Text: "https://docs.momen.app/data/formula/" → "https%3A%2F%2Fdocs.momen.app%2Fdata%2Fformula%2F" |
| DECODE_URL | Decodes a URL encoded by ENCODE_URL function | Text: "https%3A%2F%2Fdocs.momen.app%2Fdata%2Fformula%2F" → "https://docs.momen.app/data/formula/" |
| UUID | Randomly generates a string-type unique identifier | None → "550e8400-e29b-41d4-a716-446655440000" |
| TEXT_REPEAT | Repeats text a specified number of times | Text: "Yes", Count: 3 → "YesYesYes" |
| TRIM | Removes spaces from the beginning and end of text | Text: " dadada " → "dadada" |
| REGEX_EXTRACT | Extracts the first text segment that matches the regex | Text: "Phone number is 13940983244", Regex: \d{11} → "13940983244" |
| REGEX_EXTRACTALL | Returns all text segments that match the regex | Text: "Phone: 13940983244 and 13234322452", Regex: \d{11} → ["13940983244","13234322452"] |
| REGEX_MATCH | Determines if text contains content that matches the regex | Text: "13812345678", Regex: ^\d{11}$ → true |
| REGEX_REPLACE | Replaces parts of text that match the regex | Source text: "Phone number is 13812345678", Regex: \d{11}, Replace: "***********" → "Phone number is ***********" |
Mathematical Operations
| Name | Description | Example |
|---|---|---|
| + | Addition | 5 + 10 → 15 |
| - | Subtraction | 5 - 10 → -5 |
| * | Multiplication | 5 * 10 → 50 |
| / | Division | 5 / 10 → 0.5 |
| % | Remainder after division, same sign as dividend | -5 % 10 → -5 |
| MIN | Returns the minimum value | 5, 10 → 5 |
| MAX | Returns the maximum value | 5, 10 → 10 |
| ROUND_UP | Rounds up to the nearest integer | 3.5 → 4 |
| ROUND_DOWN | Rounds down to the nearest integer | -3.5 → -4 |
| INT | Rounds to the nearest integer | -3.5 → -3 |
| ABS | Returns the absolute value | -3.5 → 3.5 |
| RANDOM_NUMBER | Returns a random integer between specified numbers (not recommended for secure scenarios) | Min: 1, Max: 10 → 6 |
| POWER | Exponentiation | Base: 2, Exponent: 3 → 8 |
| DECIMAL_FORMAT | Decimal formatting (returns text if “Remove all trailing zeros” is selected) | 3.1415926, Precision: 2, Remove trailing: true → 3.14 |
| LOG | Returns the logarithm of a number with specified base | True number: 8, Base: 2 → 3 |
Array Processing
| Name | Description | Example |
|---|---|---|
| GET_ITEM | Retrieves an item from an array (index starts from 0) | ["2024", "01", "08"], Index: 1 → "01" |
| ARRAY_TO_ITEM | Retrieves an item from an array (deprecated, use GET_ITEM) | ["2024", "01", "08"], Index: 1 → "01" |
| ARR_LEN | Gets the length of the array | ["2024", "01", "08"] → 3 |
| FIRST | Returns the first item of the array | ["2024", "01", "08"] → "2024" |
| LAST | Returns the last item of the array | ["2024", "01", "08"] → "08" |
| RANDOM_ITEM | Returns a random item from the array | ["2024", "01", "08"] → "01" |
| SLICE | Extracts a section of the array | ["2024", "01", "08"], Start: 1, Count: 2 → ["01", "08"] |
| JOIN | Joins an array of text into a string | ["2024", "01", "08"], Separator: "-" → "2024-01-08" |
| INDEX_OF | Returns the index of the first occurrence of the specified item | ["2024", "01", "08"], Item: "08" → 2 |
| SEQUENCE | Generates a number sequence within the specified range. Returns empty array if end number is less than or equal to start number. | Start: 1, End: 10, Step: 2 → [1,3,5,7,9] |
| COALESCE | Returns the first “non-null” item in the array from left to right | Array: [null,1,3,2] → 1 |
| ARRAY_MAX | Returns the maximum item value in the array | Array: [1,2,3] → 3 |
| ARRAY_MIN | Returns the minimum item value in the array | Array: [1,2,3] → 1 |
| ARRAY_SUM | Sums the values of items in the array | Array: [1,2,3] → 6 |
| ARRAY_AVERAGE | Returns the average value of items in the array | Array: [1,2,3] → 2 |
| ARRAY_CONCAT | Merges two arrays into one array | Array1: [1,2,3,4,5], Array2: [2,3,4] → [1,2,3,4,5,2,3,4] |
| UNIQUE | Removes duplicate items from the array | Array: [1,2,5,4,5,2,3,4] → [1,2,5,4,3] |
Time Operations
| Name | Description | Example |
|---|---|---|
| GET_DATE_TIME | Gets a point in time | Year: 2024, Month: 1, Day: 8, Hour: 13, Minute: 14, Second: 0 → 2024-01-08T13:14:00.000+08:00 |
| DELTA | Adds or subtracts time | Time: 13:38:00.000+08:00, Add 1 hour 12 min → 14:50:00.000+08:00 |
| DURATION | Calculates the interval between two points in time | Start: 2019-12-01, End: 2024-01-08, Unit: Year → 5 |
| EXTRACT | Retrieves a specified part of the time. For day of week, outputs integers 0-6, where 0 represents Sunday | Time: 13:38:00.000+08:00, Unit: Hour → 13 |
| TO_DATETIME | Converts date and time into DateTime (timestamp) | Date: 2024-01-08, Time: 13:38:00.000+08:00 → 2024-01-08T13:38:00.000+08:00 |
| TO_DATE_TIME | Retrieves the date or time from a DateTime (timestamp) | DateTime: 2024-01-08 13:38:00.000+08:00, Extract: Date → 2024-01-08 |
Geographical Location
| Name | Description | Example |
|---|---|---|
| DISTANCE | Calculates the distance between two locations (meters, kilometers, or miles) | [120.2934,30.3150], [120.2934,31.3150], km → 866 |
| GET_VALUE_FROM_GEO_POINT | Retrieves longitude or latitude from a geo point (latitude and longitude) | [120.2934,30.3150], Type: Latitude → 30.3150 |
JSON Processing Methods
| Name | Description | Example |
|---|---|---|
| JSON_EXTRACT_PATH | Retrieves data from JSON | {"data": {"foo": "bar"}}, Path: data.foo → "bar" |
Conditions

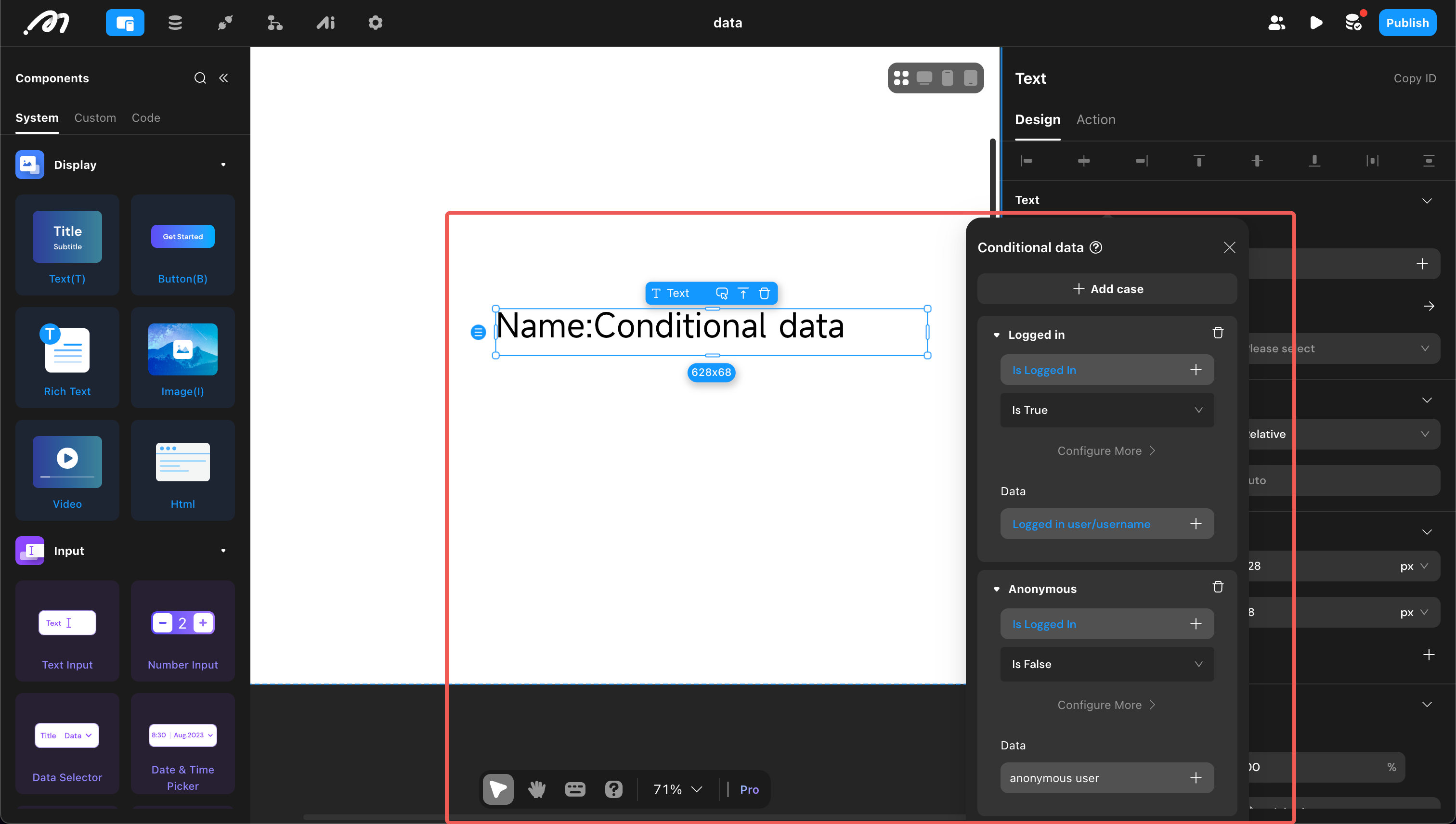

Logical operations on data are used in Conditional View, Conditional Data, and conditional branches of Actionflow. For detailed usage, see the relevant documentation.
