AI Data Model

Momen AI provides four data tables to record information generated during interactions with AI. Developers can use these tables directly for AI application data display and interaction.

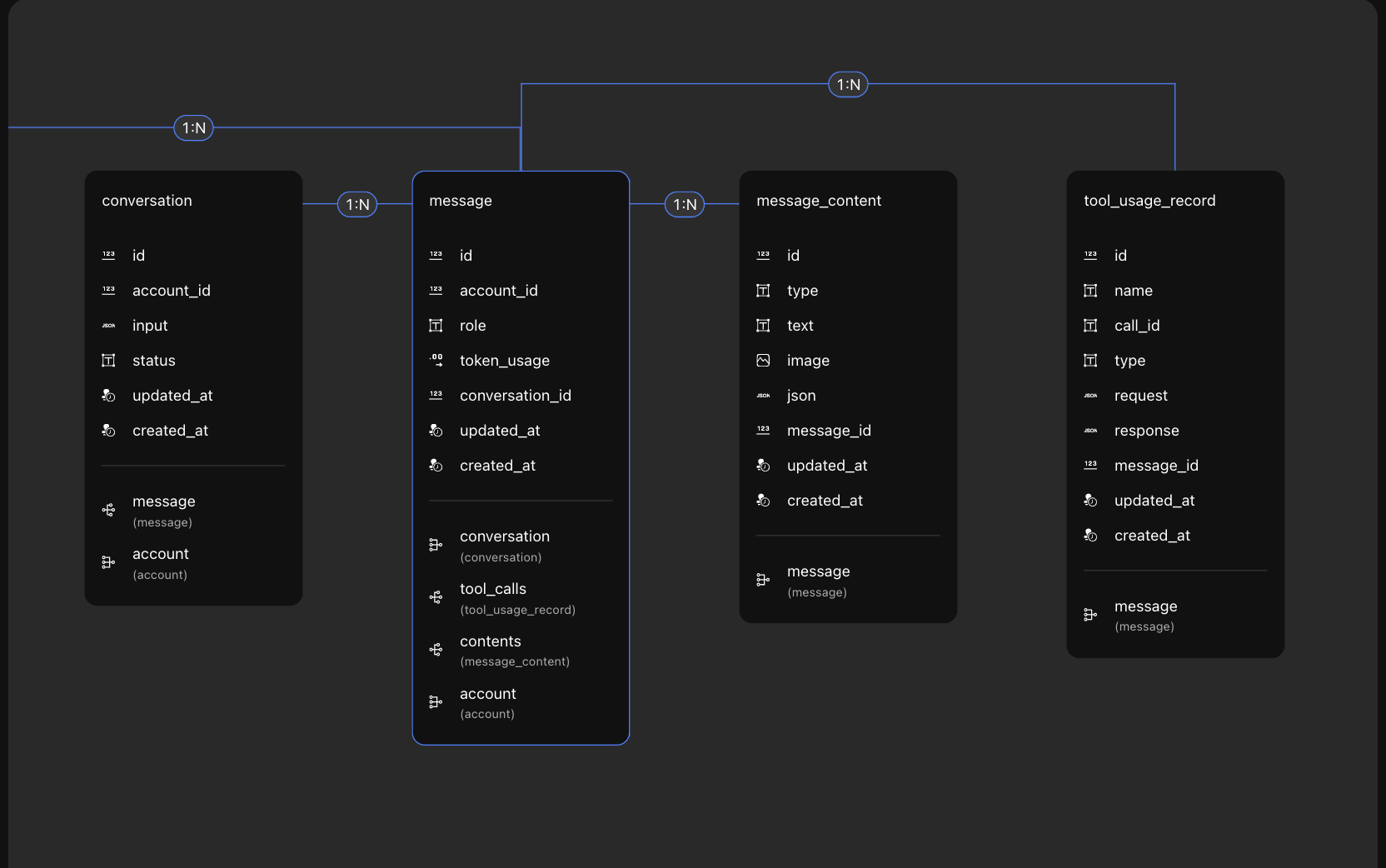

AI data model tables

Conversation

Records data for each AI session. When you debug or invoke Start Conversation in the AI configuration interface, a new entry is automatically added.

Fields:

Account ID: Integer. Relates to the account table; records which user started the session.
Input: Stores the AI configuration at session start (prompts, knowledge base, tool config, output config).
Status: Tracks the session state. Default statuses:
- CREATED: Initial state.
- IN PROGRESS: Awaiting AI reply.
- STREAMING: AI is streaming output.
- COMPLETED: AI has finished replying.
- FAILED: Failure state.
- CANCELED: Stopped by user.

Message

Records message logs for each session (not the message content itself).

Fields:

Account ID: Integer. Relates to the account table; records the message owner.
Role: Text. Indicates sender:
- system: System-generated (prompts, knowledge base/tool results).
- assistant: AI-generated reply.
- user: User input.
Conversation ID: Integer. Relates to the session table; links message to session.
In single-turn conversations, only system and assistant roles appear.
In multi-turn, the first message is system, followed by assistant. For Continue Conversation, messages are sent as user, and assistant replies.

Message Content

Stores the actual content of each message. Since messages may include both images and text, Momen AI saves them separately and links them to the message.

Fields:

Type: Text. One of: text, image, JSON.
Text: Text content (if applicable).
Image: Image content (if applicable).
JSON: JSON content (if applicable).
Message ID: Integer. Relates to the message table; links content to message.

Tool Usage Record

Tracks tool usage during AI operations. If AI calls multiple tools for a message, each usage is recorded and linked to the message.

Fields:

Name: Text. Tool name.
Call ID: Text. Tool call identifier.
Type: Text. One of:
- ACTION_FLOW: Actionflow.
- TPA: Third-party API.
- Momen AI: Other AI.
- OBTAIN_MORE_INFORMATION: Fetch more info.
Request: JSON. The request sent to the tool.
Response: JSON. The tool’s response.
Message ID: Integer. Relates to the message table; links usage record to message.
